Single Row 1.0mm Wafer Vertical 180° SMT Type UL94V0 Nylon-9T
2Pin-20Pin SH BMxxB SRSS
Description
Wafer connectors are very similar to headers. The big difference is
these connectors are more suitable as actual connectors as opposed
to a place to attach some wires."
Here are the particular differences and similarities:
Wafer connectors are polarized which means you can not plug the
mating connector in the wrong way.
The male connector is attached to your PCB board, while the female
is attached to a wire cable.
The female connector is crimped on, so no soldering is required
(soldering is optional though).
The pin spacing is the same as header connectors, so they are
compatible with each other.
Housing are generally made of only plastic parts (some have metal
parts), which are assembled with wire and terminal wafer.

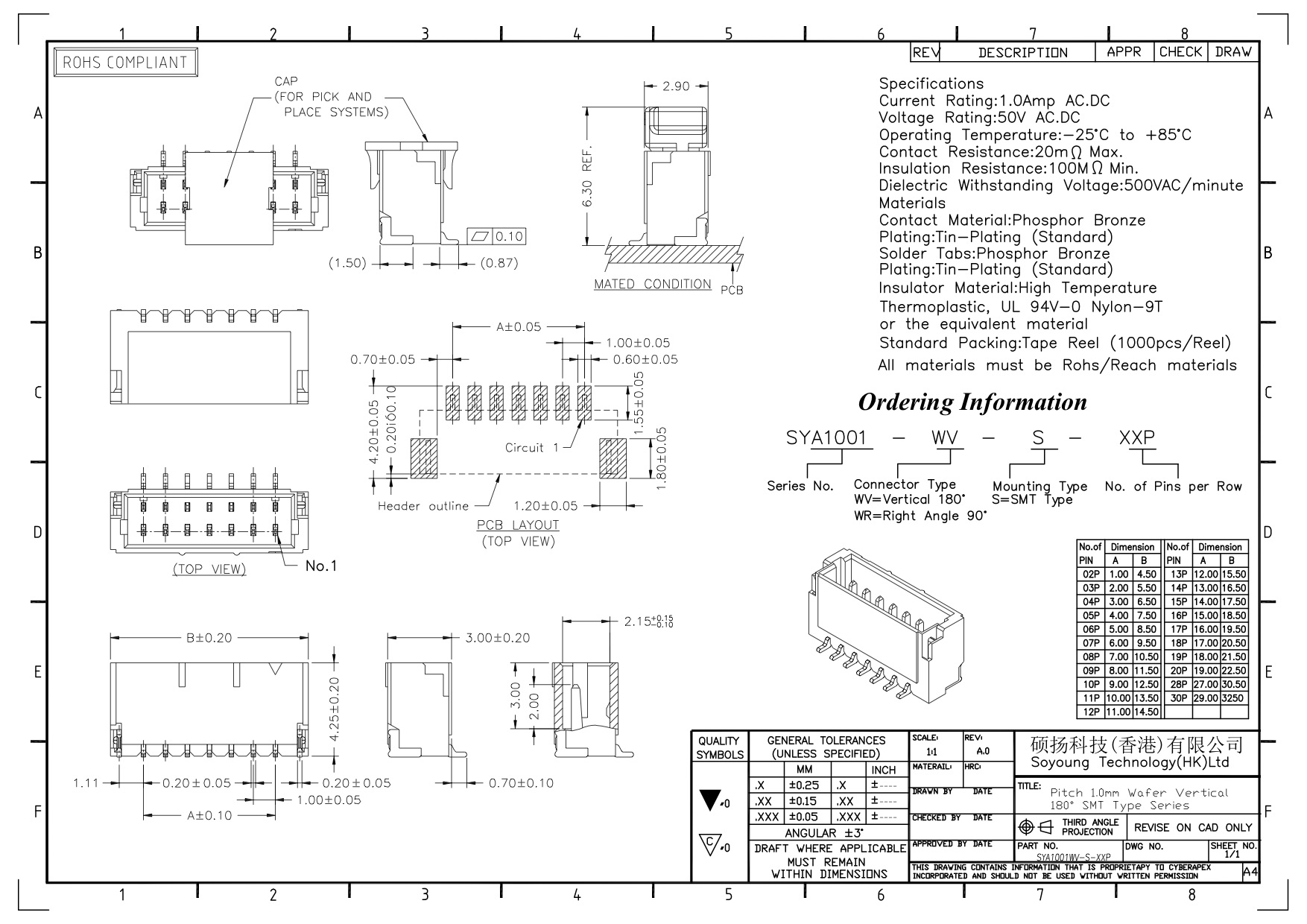

SYA1001WV-S-XXP JST SH BMxxB
SRSS.pdf
Why Choose Soyoung
Automatic Production More than 80% Soyoung products are made by
automatic assembly lines. As intelligent is more and more widely in
use, We could only adapt the development of the times,so that we
could provide most qualified products to our clients.
Delivery on time
Every customer is distinctive,so we have to make every delivery in
time to cherish every chance given by our customers.
Make Value
Business is like a long journey. The value is the views on the
way.Making value for the customers is to make value for the company
,as mutual win-win is our goal.
Instant Response
Everybody will get in trouble now and then,same as working time.
Instant response might be possible to solve the problems customers
meet in time
How to order
1. Provide a famous brand(Such Samtec/Molex/FCI/JST ect) part
number or your design method. We'll offer you our part for
checking.
2. Choose our website part and send e-mail to our sales team.
3. Small order is welcome.
How to Packing
We provide flexible packaging methods to meet different
requirements. For Female Header connector, there are four methods
of packaging:
1. Tray Packing, suitable for manual assembly.
2. Tube Packing, suitable for manual assembly.
3. Reel Packing with tape, suitable for automatic machine
producing.
4. Reel Packing with Cap, suitable for automatic machine producing.
FAQ
Q: where is your factory?
A:We are located in Shenzhen,Guangdong.
Q: How about your quality control?
A: All the products will be 100% checked before the shipment.
Q: Do you provide a sample?
A: Of course,free sample with freight collect.
Q: What is the lead time?
A: It depend on quality, generally within 7-15 days after pay for
the order.
Q: What is the MOQ?
A: In general 100pcs, but small order can be accepted.
Q: Quality problems?
A: If there is any quality problem or question, we could offer
technical support or return service.
