Female Header Connector 2.54mm Single Row Dip TYPE 12PIN To 140PIN H=6.80mm

Name: Female Header Connector 254mm Single Row Dip TYPE 12PIN To 140PIN H680mm
Brand: Soyoung
Price: 1 USD

Ask Lasest Price
Brand Name :	Soyoung
Model Number :	SYFHA109-XXXXA01
Certification :	SGS ,REACH
Price :	It depends on the customers' requests and can be negotiable.
Payment Terms :	T/T
Supply Ability :	500K/Month
Delivery Time :	10-14works

Add to Cart

Product Details
Company Profile

Female Header Connector 2.54mm Single Row Dip TYPE 12PIN To 140PIN H=6.80mm

Female Header Connector 2.54mm Single Row Dip TYPE 1*2PIN To 1*40PIN H=6.90mm

What's the Female Header

Female Header was made of housing contain with metal contacts. The female contacts are designed to hold or retain the male contacts. When both male and female parts of the connector come together will connecting the board to board.

Normally the female header have single row/dual row/three row or four row, widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the male header to supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.

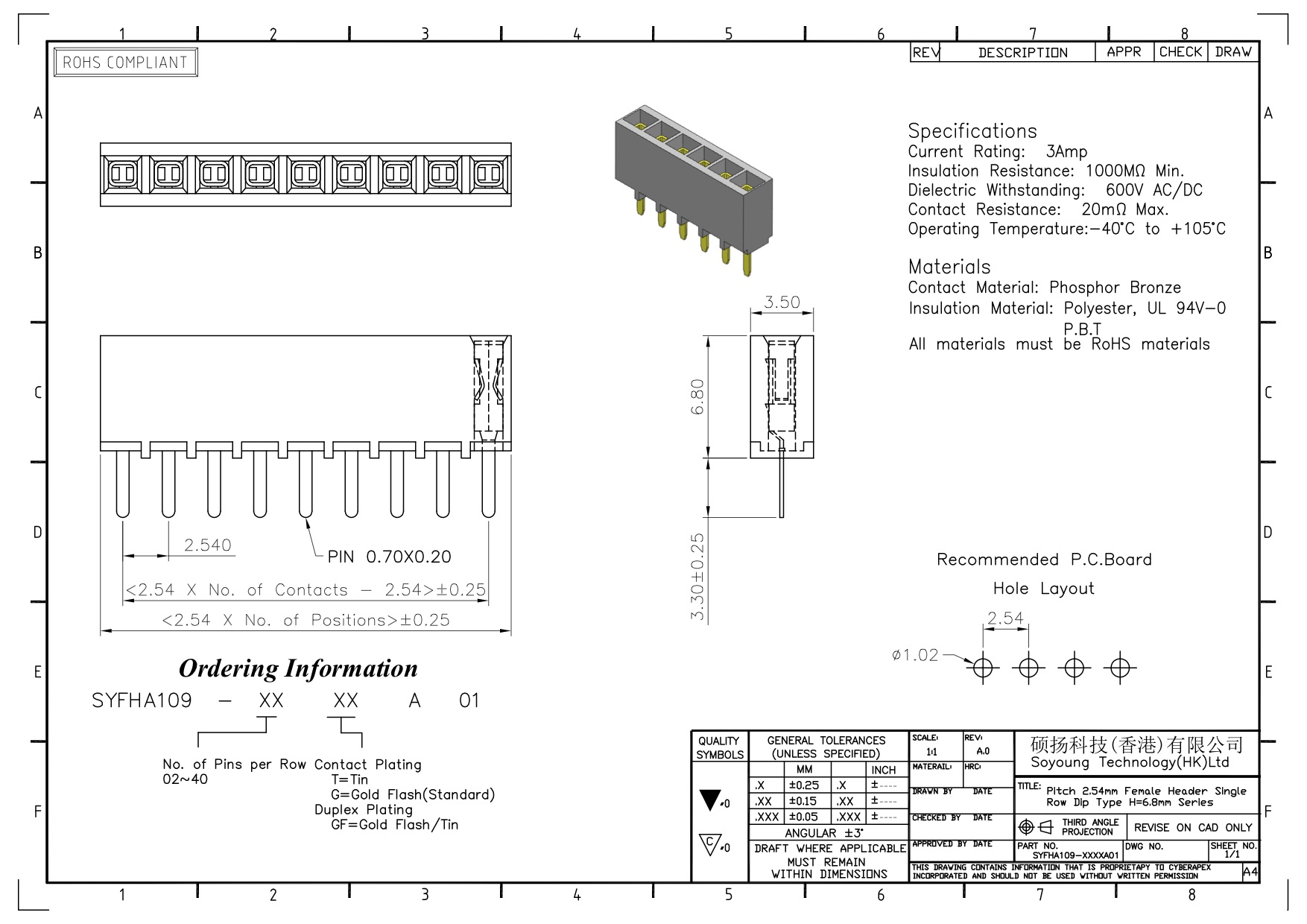

SYFHA109-XXXXA01.pdf

How to Packing

We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:

1. Tray Packing, suitable for manual assembly.

2. Tube Packing, suitable for manual assembly.

3. Reel Packing with tape, suitable for automatic machine producing

FAQ

1. where is your factory?

We are located in Shenzhen,Guangdong.

2. How about your quality control?

All the products will be 100% checked before the shipment.

3. Do you provide a sample?

Of course,free sample with freight collect.

4. What is the lead time?

It depend on quality, generally within 7-15 days after pay for the order.

5. What is the MOQ?

In general 100pcs, but small order can be accepted.

6. Quality problems?

If there is any quality problem or question, we could offer technical support or return service.
