Pin Header Connector 1.27mm Serise Single Row Straight Type 1*2PIN
To 1*50PIN SQ0.46mm
What's the Pin Header
1. Pin header is called universal connector. Based on different
designs for PCB, they choose different pitch connectors to meet.
2. 0.8mm/1.0mm/1.27mm/2.00mm/2.54mm pitch pin header are featured
products in our company. If you need special pin header that
standard pitch couldn't satisfy, e-mail or call our sales team.
3. Generally, pin headers with suited female headers are used to
finish created modules in electronic industry.
4. Regarding pin header electrical and mechanical properties, the
same pitch has the same function, which we have shown clearly in
our datasheet.
5. Another common variation on pin header is called "machine pin"
version. The normal version is formed out of stamped and folded
sheet metal, machine pin connectors are formed by tooling the metal
into the desired shape, which is more robust, with a better joint
and longer life, making it more expensive though. Still more and
more automotive and medical industry customers choose machine pin
to improve connection stability

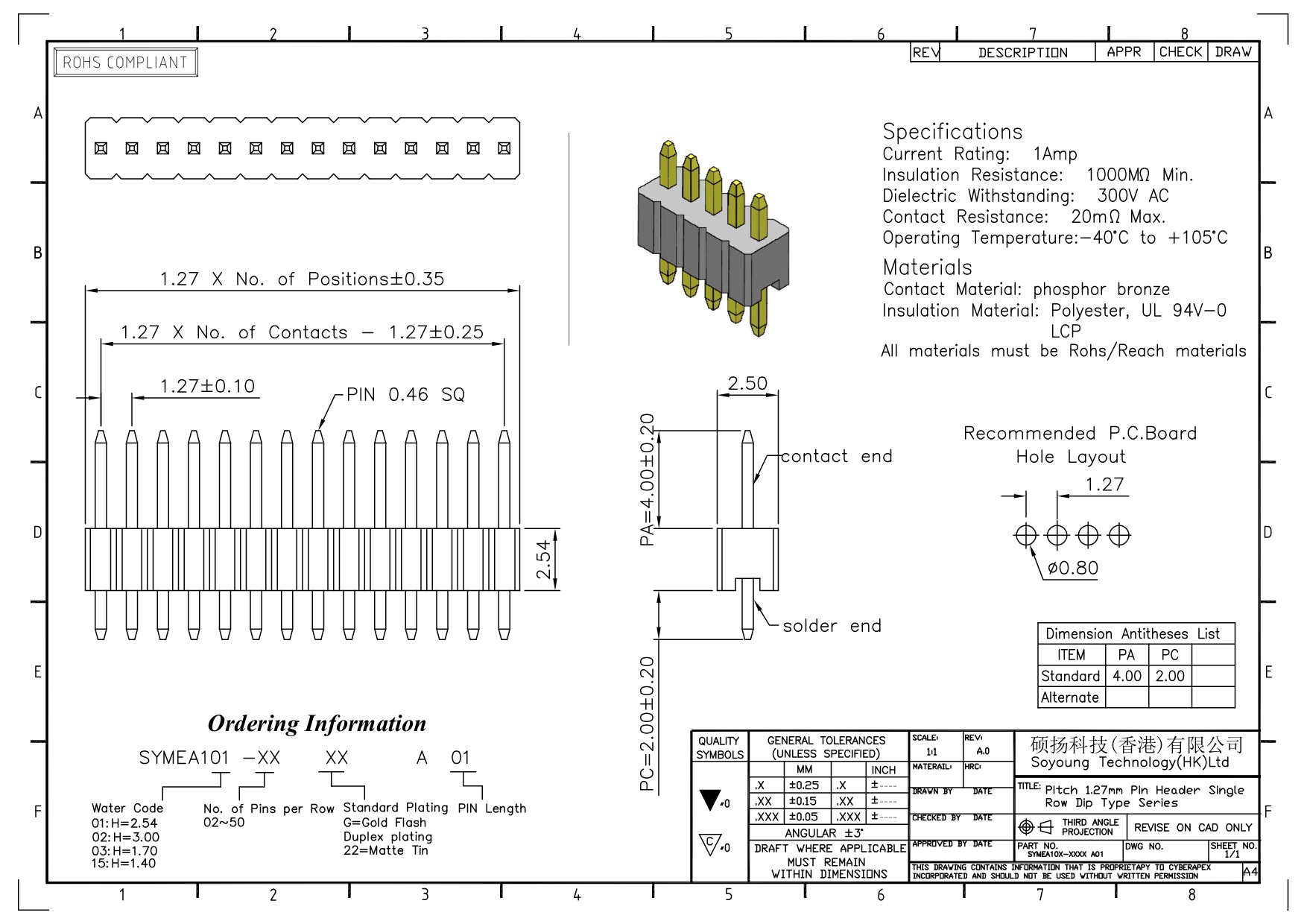

SYMEA101
102 103 115-XXXXA01 SQ0.46mm.pdf
Our Service
1. Our aim is make sourcing connector easy for you.
2. We'll reply your inquirys within 24hours,Online Inquiry is
Welcome
3. We provide OEM,ODM service, Any of special connector requested,
We are going to make new mould for you but mould cost half for
each.
4. 20pcs free samples, For repeat order customer,We'll provide more
than 20pcs samples for prototype project if necessary.
5. Our business is not just about connector supply, it's about
delivering promises.
How to order
1. Provide a famous brand(Such Samtec/Molex/FCI/JST ect) part
number or your design method. We'll offer you our part for
checking.
2. Choose our website part and send e-mail to our sales team.
3. Small order is welcome.
How to Packing
We provide flexible packaging methods to meet different
requirements. For Female Header connector, there are four methods
of packaging:
1. Tray Packing, suitable for manual assembly.
2. Tube Packing, suitable for manual assembly.
3. Reel Packing with tape, suitable for automatic machine producing
4. Reel Packing with Cap, suitable for automatic machine producing
