Pin Header Connector 1.27mm Serise Dual Row Straight Type 2*2PIN To 2*50PIN SQ0.40mm

Scope Of Application

Widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.

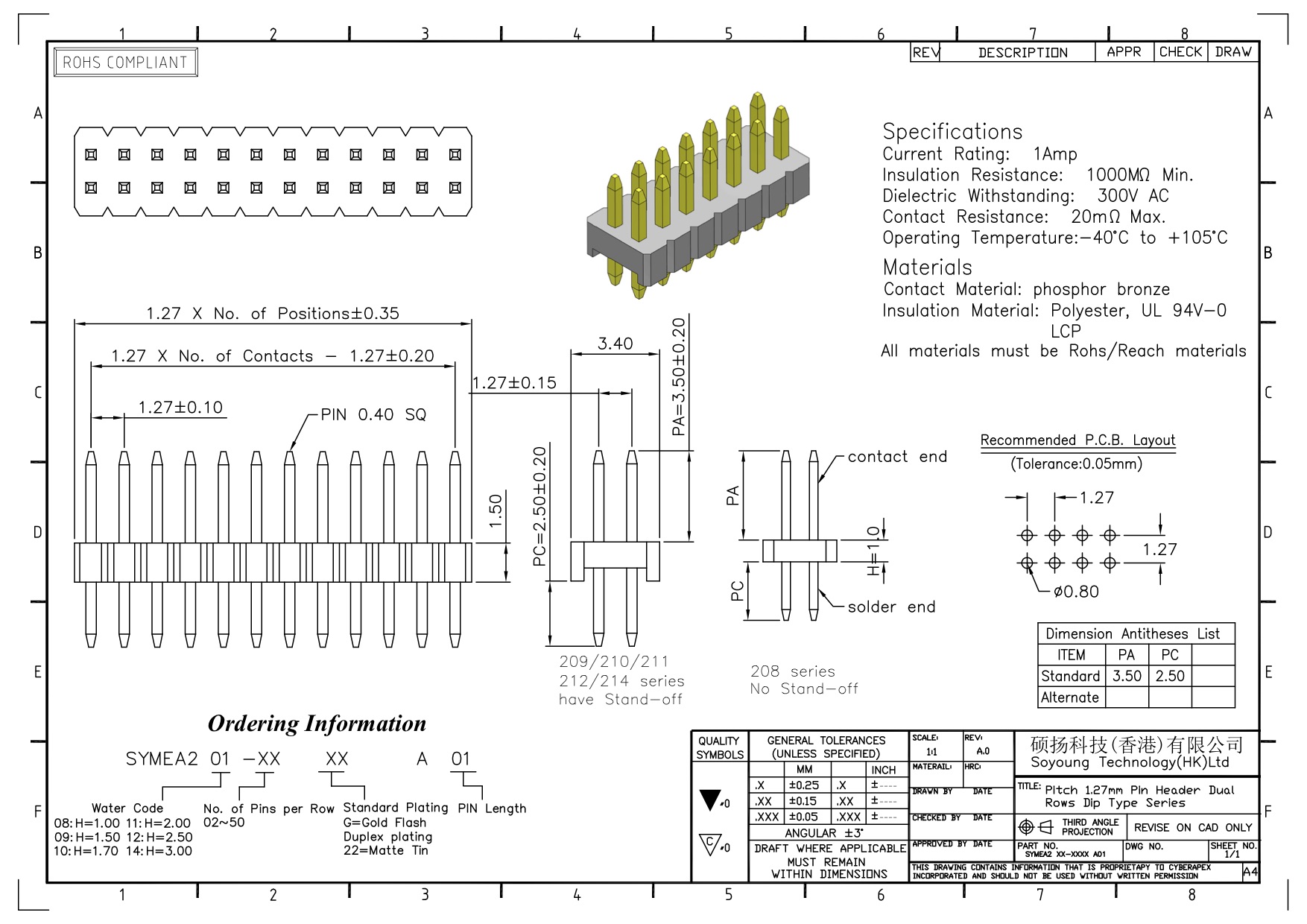

SYMEA208 209 210 211 212 214-XXXXA01 SQ0.4mm.pdf

What is a PCB Connector
Printed Circuit Board connectors are connecting systems, which are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. As PCBs are not hard-wired to each other and can be assembled later in a production process, providing an easy method of Design for Manufacture.

FAQ

Q: How long is your lead time?

A: It depends. Normally, it is 2-6 working days if the goods are in stock,

or it is 7-40 days if the goods not in stock.

Q: What is your terms of payment ?

A: For small amount orders, 100% better paid by PayPal or T/T in advance. For large amount orders like more than

10000USD, 30% T/T in advance , balance fully paid before shipment.

Q: Do you have any MOQ limit for an order?

A: Yes, we have MOQ. different items have different MOQ. We will mark MOQ when we quote.

Q: How to proceed an order?

A: Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, customer confirms the samples and pay deposit for the official order. Finally, we arrange the production and ship once it's ready.
