• Pin Header Connector 1.0mm Single Row Right Angle TYPE 1*2PIN To 1*40PIN H=1.0mm

Material

Contact Material: Phosphor Bronze
Standard Insulator Material: Polyester LCP, UL94 V-0

Plating

(A) Finish: Gold Flash All Over - Under Plate: Nickel 30-50µ”
(C) Finish: Tin All Over – 80µ” minimum – Under Plate: Nickel 30-50µ”

Electrical

Current Rating: 1 AMP
Contact Resistance: 20mΩ Max.
Insulation resistance: 1000 MΩ MIN.
Dielectric withstanding voltage: AC 300 V

Environmental and Processing

Operating Temperature: -40°C to +105°C - (Contact SOYOUNG if you require temperatures outside this range)
LCP Suitable For: IR Reflow, Wave, Manual solder

Product Application

Male pin header widely used in different industry such as air-condition, multimedia, UAV and so on. as below image is application scenarios. image is a limitation, for more detail you can directly contact our sales team

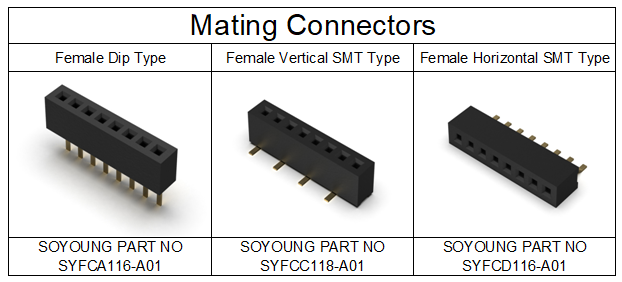

Mating Connectors

How to Packing

We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:

1. Tray Packing, suitable for manual assembly.

2. Tube Packing, suitable for manual assembly.

3. Reel Packing with tape, suitable for automatic machine producing

4. Reel Packing with Cap, suitable for automatic machine producing
