Pin Header Connector 1.00mm Single Row R/A SMT Type 1*2PIN To
1*40PIN H=1.00mm
What's the Pin Header
1. Pin header is called universal connector. Based on different
designs for PCB, they choose different pitch connectors to meet.
2. 0.8mm/1.0mm/1.27mm/2.00mm/2.54mm pitch pin header are featured
products in our company. If you need special pin header that
standard pitch couldn't satisfy, e-mail or call our sales team.
3. Generally, pin headers with suited female headers are used to
finish created modules in electronic industry.
4. Regarding pin header electrical and mechanical properties, the
same pitch has the same function, which we have shown clearly in
our datasheet.
5. Another common variation on pin header is called "machine pin"
version. The normal version is formed out of stamped and folded
sheet metal, machine pin connectors are formed by tooling the metal
into the desired shape, which is more robust, with a better joint
and longer life, making it more expensive though. Still more and
more automotive and medical industry customers choose machine pin
to improve connection stability

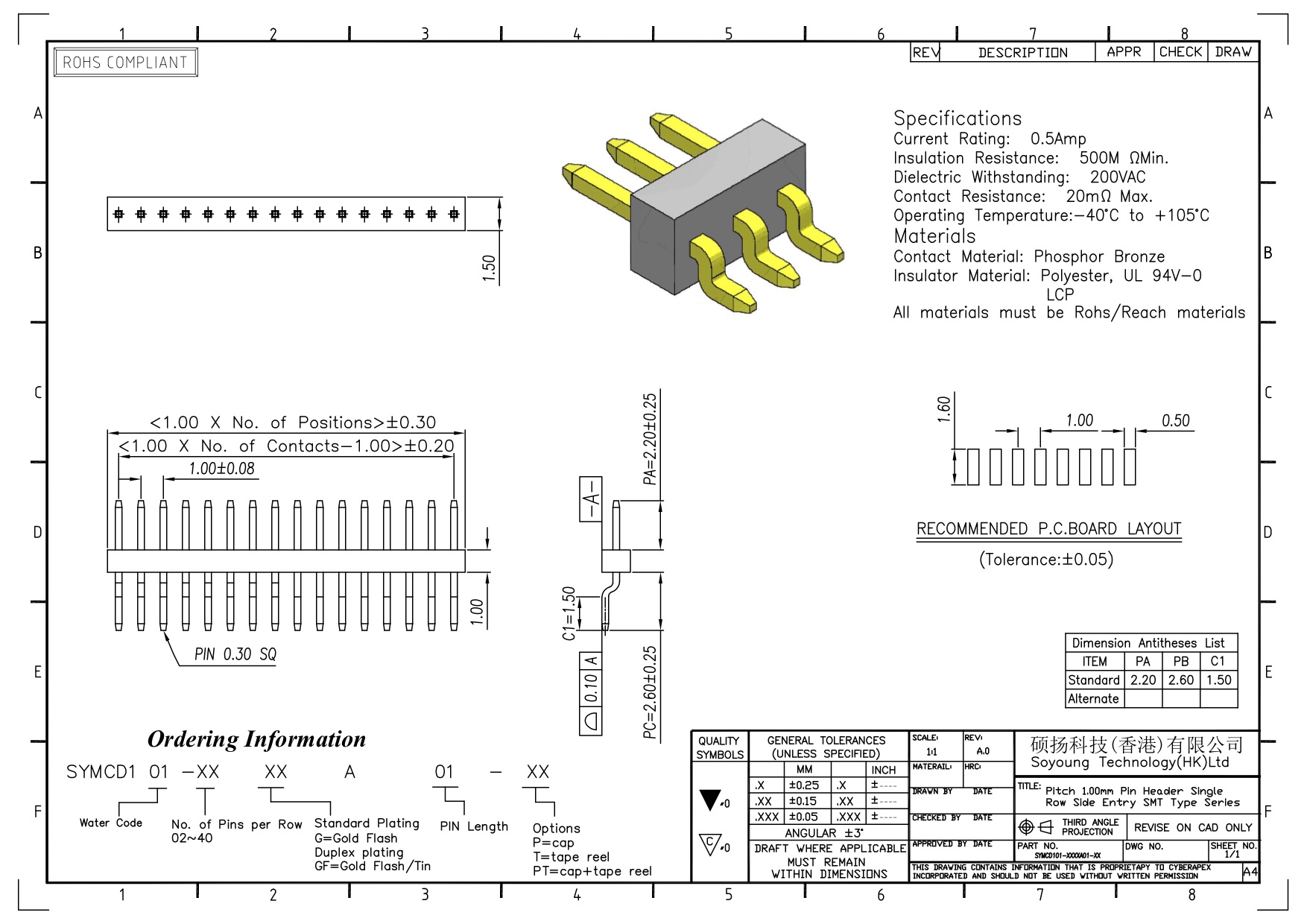

SYMCD101-XXXXA01.pdf
How to order
1. Provide a famous brand(Such Samtec/Molex/FCI/JST ect) part
number or your design method. We'll offer you our part for
checking.
2. Choose our website part and send e-mail to our sales team.
3. Small order is welcome.
How to Packing
We provide flexible packaging methods to meet different
requirements. For Female Header connector, there are four methods
of packaging:
1. Tray Packing, suitable for manual assembly.
2. Tube Packing, suitable for manual assembly.
3. Reel Packing with tape, suitable for automatic machine
producing.
4. Reel Packing with Cap, suitable for automatic machine producing.
How to Shipping
1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express
shipping method.
2. If goods is large:Sea or Air shipping method.
FAQ
Q: What is the MOQ?
A: Our MOQ is: 1000 PCS(1 PCS for sample).
Q: How about samples? is it free ?
A: 20 Piece free sample is available, If you would like to pay the
freight fees.
Q: What is your price term & payment terms?
A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but
other terms is available too.
2. Payment terms: T/T, Paypal and other terms.
Q: What about your leading&delivery time?
A: Leading time according to your quantity, and usually delivery
time is 5~7 working days
Q: Do you have UL certificate? and others?
A: Of course, we have , and also qualified SGS, ISO9001:2004 etc.
